Introduction

In today's digital age, wireless connectivity has become an indispensable part of life. If you are looking for a high-performance, stable, and reliable wireless solution, then ESP8684H2 will be your first choice.

What is ESP8684H2?

ESP8684H2 belongs to ESP8684 series. The ESP8684 series SoC is an ultra-low-power and highly integrated MCU-based SoC solution that supports 2.4GHz Wi-Fi and Bluetooth® Low Energy (Bluetooth LE). The ESP8684 SoCs offer a 32-bit RISCV single-core processor with a four-stage pipeline and operate at up to 120MHz. The storage capacity of the device is ensured by 272KB of on-chip SRAM (16KB for cache) and 576KB of ROM. The block diagram of the ESP8684 series is shown below.

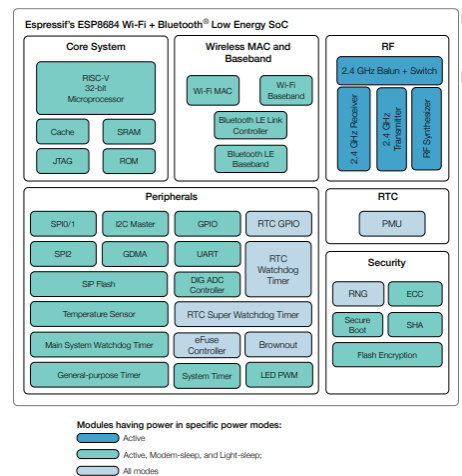

Figure 1: Block diagram of ESP8684

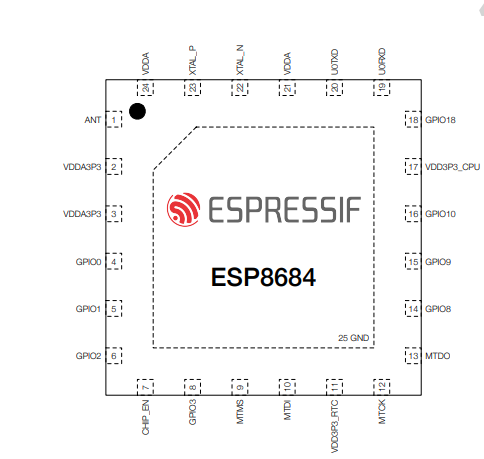

ESP8684H2  Pinout

Figure2-ESP8684H2  Pinout

Common Specifications You Should Know?

ESP8684H1 vs ESP8684H1 vs ESP8684H4

Why ESP8684H2 is a reliable wireless solution?

1. Excellent performance

ESP8684H2 stands out for its excellent performance. Equipped with advanced technology, it provides a stable and fast wireless connection, ensuring that your device performs well even under heavy load conditions.

Figure3-fast wireless connection

2. Seamless connection experience

Seamless connection is the key to modern life, and ESP8684H2 provides users with a truly seamless connection experience through its advanced connection technology. Whether it is mobile devices, smart homes or industrial applications, ESP8684H2 can easily handle it, allowing you to say goodbye to the trouble of unstable connections.

3. Strong compatibility

ESP8684H2 supports multiple wireless communication protocols, including Wi-Fi and Bluetooth, making it widely compatible. This means you can easily integrate the ESP8684H2 into a variety of devices and applications, giving you more room for innovation.

4. Low power consumption design

In today's era of energy efficiency, ESP8684H2 ensures a long service life through its low power consumption design. This makes it ideal for areas such as wireless sensors, smart homes, and wearable devices.

5. Simplify the development process

As a developer-friendly solution, ESP8684H2 provides a wealth of development tools and documentation to help you quickly start your project. Whether you are a beginner or an experienced developer, the ESP8684H2 can make your development process easier and more enjoyable.

6. Security

Data security is crucial, and ESP8684H2 protects your data from any threats through its advanced security features. Encrypted communication, secure authentication, everything is under control.

In the digital age, connectivity is not just a technology, but a way of life. ESP8684H2 will provide high-performance, seamless wireless connectivity for your devices and applications, allowing your innovation to develop more rapidly.
